EKS Product Handbook

Advanced Cladding, Modular Systems, and Framing Solutions

Engineered for Durability, Sustainability, and Modern Construction.

Eco Kladding Solutions delivers innovative exterior paneling, modular systems, and framing products designed for today’s high-performance buildings. Explore our product range and specifications below.

Working with EKS (PDF)Contact Us

Coming Soon

ProductSpecifications
EKS Rock Wool Sandwich Panel• Strength: High load-bearing strength• Thermal Performance: Outstanding thermal insulation effect• Stability: Strong stability and long service life• Acoustic Properties: Sound insulation and sound absorption• Heat Resistance: High heat resistance• Weight: Lightweight for easier handling
Materials

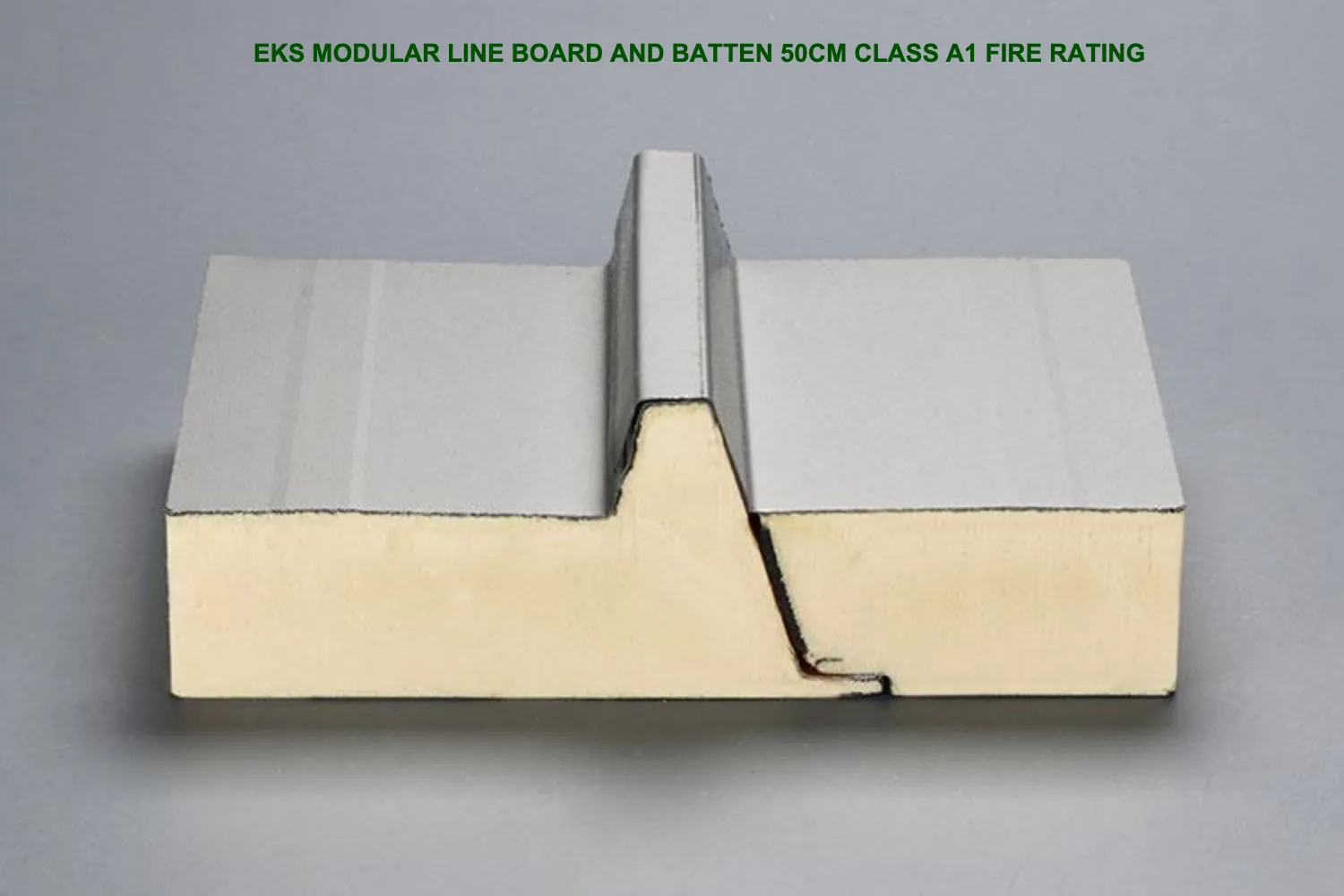

EKS rock wool sandwich panel with high load strength, outstanding thermal insulation, sound insulation, heat resistance, lightweight design, and long service life.EKS Wood Grain RockwoolEKS MODULAR LINE BOARD AND BATTEN 50CM CLASS A1 FIRE RATINGEKS Rich Wood Grain Panel Cross-section of EKS rock wool panel showing double-skinned steel faces, polyurethane sealing, and high-density rock wool core for maximum thermal and sound insulationEKS Rockwool Panel on the Manufacturing Table
EKS Socketed Rockwool PanelsEKS Tongue and Groove Wall/Roof Panel
ProductSpecifications
EKS Composite Core SCM Panel• Type: Hard composite panel • Facing: Galvanized steel, stainless steel, or aluminum • Core: High-density polyethylene (HDPE) • Size: 1220 x 2440mm (custom sizes available) • Thickness: 6–12mm (customizable) • Strength: High impact, vibration, and abrasion resistance • Weight: Lightweight, ideal for reducing fuel costs and increasing payload • Corrosion Resistance: Excellent, even in varied environmental conditions • Moisture Protection: Non-absorbent metal outer layer and core
Layer guide for EKS SCM panels, illustrating structural composition and material arrangement for enhanced performance in construction applications.EKS composite core SCM panel with galvanized steel or aluminum facing, high-density polyethylene core, providing high strength, corrosion resistance, lightweight design, and moisture protection.

EKSP Panel Products

ProductSpecifications
EKSP101 6mm Steel Double-sided Skin Face Panel• Size: 1219 x 2438 x 6mm (4 ft x 8 ft)  • Core: Foam board, HDPE density 0.7  • Weight: Lightweight  • Fire Rating: B2 flame retardant
EKSP102 6mm Aluminum Double-sided Skin Face Panel• Size: 1219 x 2438 x 6mm (4 ft x 8 ft)  • Core: Foam board, HDPE density 0.7  • Weight: Lightweight  • Fire Rating: B2 flame retardant
EKSP103 6mm Steel Double-sided Skin Face Panel Core• Size: 1219 x 2438 x 6mm (4 ft x 8 ft)  • Core: Composite panel, HDPE density 1.5  • Fire Rating: B1 flame retardant
EKSP104 Rock Wool Core Color Double-sided Skin Steel Panel – Variant 1• Size: 1000 x 2438 x 50mm  • Finish: Double-sided skin, polyurethane sealed  • Core: Rock wool, capacity 100  • Fire Rating: A1 flame-retardant
EKSP105 Rock Wool Core Color Double-sided Skin Steel Panel – Variant 2• Size: 1200 x 2438 x 50mm  • Finish: Double-sided skin (0.4mm thick), polyurethane sealed  • Core: Rock wool, capacity 100  • Fire Rating: A1 flame-retardant
EKSP106 PET Core Aluminum Double-sided Skin Sheet• Size: 1219 x 2438 x 50mm (4 ft x 8 ft)  • Core: 50mm PET foam core  • Fire Rating: Class B flame retardant

EKSG Girts & Framing

ProductsSpecifications
EKSP201 2x3" L Bar Girt• Quote No.: Q24-3467A • Material: HDPE blend with PP glass fiber reinforcement • Color: Black • Options: Fire Retardant (FR) and Non-FR available • Application: Structural girt support for cladding systems
EKSP202 2.50" Z Bar Girt• Quote No.: Q24-3468A • Material: HDPE blend with PP glass fiber reinforcement • Color: Black • Options: FR and Non-FR available • Application: Substructure and panel mounting support
EKSP203 3.00" Z Bar Girt• Quote No.: Q25-3480A • Material: HDPE blend with PP glass fiber reinforcement • Color: Black • Options: FR and Non-FR available • Application: Heavy-duty cladding support; higher structural performance

Modular Systems

ProductsSpecifications
EKS Modular Division – Residence• Type: Pre-fabricated residential units • Technology: Built using EKS panel systems • Features: Energy efficient, rapid deployment, customizable finishes • Panel Spec: R10 double-skinned rock wool board and batten
EKS Modular Division – Construction Site Modular Office• Type: Durable, relocatable office units • Purpose: Site management and field operations • Features: Insulated, climate-ready, easy to assemble and disassemble • Panel Spec: R10 double-skinned rock wool core with ½ reveal, vertical or horizontal installation

Contact and Request a Quote

Interested in technical data sheets, pricing, or custom orders?

Contact Us
